RASPBERRY PI3

Raspberry Pi Foundation RASPBERRY PI3 Video Transcript

Manufacturer

Raspberry Pi Foundation

Product Category

Embedded System Development Boards and Kits

Description

BCM2837 Application Processor and SOC Development Board 1200MHz CPU 1GB RAM Linux/Win 10 OS

Also related to this product:

Specifications

  • Type
    Development Board
  • Supported Device
    BCM2837
  • Supported Device Technology
    Application Processor and SOC
  • Maximum Clock Rate (MHz)
    1200
  • RAM Size
    1GB
  • USB
    4
  • RS232
    0
  • Ethernet
    1
  • I2C
    0
  • CAN
    0
  • SATA
    0
  • SPI
    0
  • UART
    0
  • ADC
    0
  • GPIO
    40
  • Display Interface
    DSI/HDMI
  • Display Type
    LCD
  • Operating Systems
    Linux|Win 10
  • PC Card Interface
    micro SD
  • JTAG Support
    No
  • Audio Interfaces
    Yes
  • WIFI
    On Board
  • Product Length (mm)
    85
  • Bluetooth
    On Board
  • Product Width (mm)
    56
  • Product Depth (mm)
    17
  • Number of LEDs
    0
  • Linux
    Linux
  • Windows
    Win 10
  • Daughter Cards
    No

Development Kits and Tool Detail

  • Description

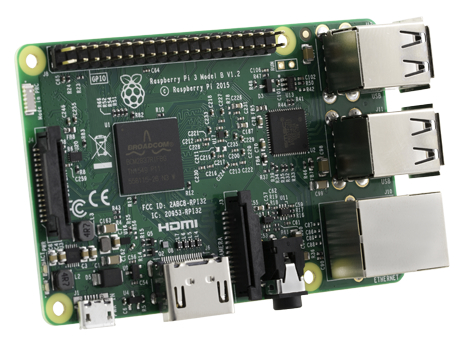

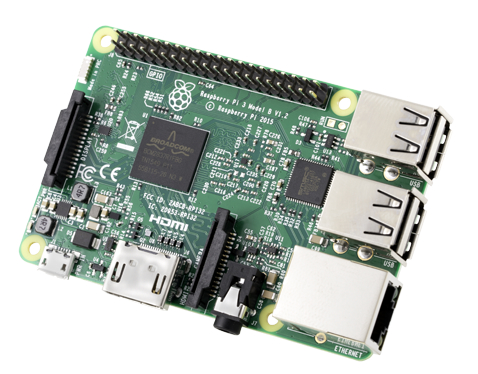

    The Raspberry Pi 3 Model B is the last single-board computer from the Raspberry Pi Foundation. In this version, they’ve upgraded to a 1.2Ghz 64-bit quad-core ARM processor and added 802.11n Wireless LAN, Bluetooth 4.1 and Bluetooth Low Energy.

    Like the previous version (the Pi 2) it has 1 GB of RAM, 4 USB ports, and full HDMI support. The Raspberry Pi 3 also has the same form factor as the Pi 2 (and Pi 1 Model B+).

    The Raspberry Pi runs Raspbian and/or NOOBS (both Linux-based operating systems) which boot from the removable SD card. A host of third-party operating systems are also supported, including Ubuntu Mate, Windows 10 IoT Core, and OSMC.

    The Raspberry Pi 3 is a credit-card sized computer capable of doing just about anything a desktop PC does. From web surfing and word processing, to playing Minecraft or acting as a media player, the Raspberry Pi’s capabilities are extensive. With plenty of graphics processing power, the Raspberry Pi 3 is capable of streaming BluRay-quality video. If you’re looking to incorporate the Pi into your next embedded design, the 0.1” spaced 40-pin GPIO header gives you access to 27 GPIO, UART, I2C, SPI as well as both 3.3V and 5V power sources.

    raspberry pi 1

    raspberry pi 2

  • In Stock

    819 parts

    Can ship today

    • Ships from: United States of America
    Per Unit
    $35.00

    Increments of 1

    Total
