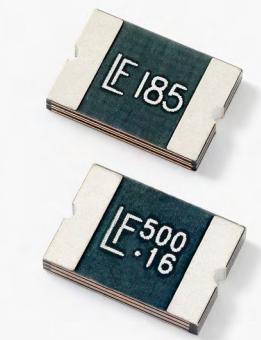

LittelfuseMICROSMD005F-2PTC Resettable Fuses

PTC Resettable Fuse 0.05A(hold) 0.15A(trip) 30VDC 10A 1W 1.5s 3.6Ohm SMD Solder Pad 1210 T/R Automotive

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8533.40.80.70
Maximum Voltage Rating	30VDC
Maximum Current Rating (A)	10
Hold Current (A)	0.05
Trip Current (A)	0.15
Minimum Initial Resistance (Ohm)	3.6
Maximum Post Trip Resistance (Ohm)	50
Typical Power Dissipation (W)	1(Max)
Maximum Trip Time (s)	1.5@0.25A
Termination Style	Solder Pad
Number of Terminals	2
Minimum Operating Temperature (°C)	-40
Maximum Operating Temperature (°C)	85
Packaging	Tape and Reel
Size (mm)	3.43 X 2.8 X 0.85
Product Length (mm)	3.43(Max)
Product Depth (mm)	2.8(Max)
Product Height (mm)	0.85(Max)
Mounting	Surface Mount
Package/Case	1210

Import TariffMay apply to this part if shipping to the United States

10,667 parts: Ships today
